DIY Flat Pergola Roof (How to Put a Roof On A Flat Pergola)
I love the pergola in my backyard. I like the light that the open ceiling provides. But I don’t like getting rained on when I’m under it. So I found a solution that lets me have a cover from the rain and still see the sky above – clear polycarbonate roofing panels. Then all I had to do was figure out how to put a roof on a flat pergola, and I was all set!
A while ago I posted some waterproof cover ideas for pergolas because I was looking for some inspiration for covering the pergola over the grill area in my backyard.
It isn’t an area that I use that much when it’s raining, so you might be wondering why I need a waterproof cover for it.
After every rain, the countertop and grill are covered with leaves and bits of flowers that have to be washed off before you can use the grill again. Which makes me not want to use the grill that much 🙂
Plus, it would be nice not to get soaked if a downpour happens to come through right when I’m cooking (which seems to happen every year at my 4th of July cookout).
All that to say, I finally made a decision on what roofing to put up and got it installed. And I’m really happy with the way it turned out.
What I ended up going with is the clear corrugated polycarbonate roofing panels that you can install right over the top of your existing pergola…which is exactly what I wanted.
Keep reading to find out how to put a roof on a pergola.
This post may contain affiliate links. We make a small commission if you buy the products from these links (at no extra cost to you). As an Amazon Associate, I earn from qualifying purchases. But we only recommend products we would use ourselves. For more information, click here to see our disclosures.
- Clear roofing panels* – I used the SunTuf 26″ x 8′ panels. They also come in 12′ lengths if you have a bigger roof to cover.
- Horizontal plastic closure strips* – These attach to the top of the pergola to hold the roofing panels on. Since they should be installed every 2 feet, you will need about 5 for every 8′ length of paneling.
- Vertical plastic closure strips* – These run along the inside of the raised part of the corrugated panels. You will need these if you want to close the gap at the edges of your pergola. Or to secure the panels to your pergola if it has ends that stick out past the main frame (like mine)
- 1″ wood screws with washers*
- 2″ wood screws with rubberized washers*
- Variable speed cordless screw driver – you will need to use low speeds to install the panels so the variable speed option is important
- 1/4″ drill bit
- 1/4″ nut driver bit*
1 | Decide Which Direction To Install The Panels
If your pergola roof has a slope or is attached to the house, the direction of the panels is determined for you. The grooves need to point downhill and away from the house.
However, if you have a free-standing pergola with a flat roof (like mine) you need to decide which way the grooves will go. Which also determines which way the water will run off.
I decided to have the grooves go from front to back, mostly because I could use 8′ roofing panels to span the whole distance without requiring any lengthwise joins.
Another consideration might be the direction that the boards on your pergola run. The horizontal closure strips need to be installed on top of parallel boards that are less than 3 feet apart. So if the boards on top of your pergola run the wrong way, you’ll need to add some additional ones on top.
2 | Add Pitch To The Flat Pergola
These roofing panels are intended to be installed on a sloped roof rather than a flat one.
Since my pergola doesn’t have a slope, I wanted to add something that would at least prevent the water from puddling in the middle of the roof.
The manufacturer’s guidelines say the pitch should be 1 1/2″ for each foot of paneling.
My pergola roof is about 7′ wide. So to raise the roof on one end would require a 10 1/2″ drop! Which I thought would look pretty strange.
So I decided to raise the roof in the middle of the pergola instead of at one end.
By cutting the panels in half and installing a ridge cap along the top, I could shorten the length of paneling to 3 1/2′ on each side. Which with the manufacturers instructions means about a 5″ slope.
Since I live in an area that doesn’t get much snow, I decided to go with even less of a slope – 1 1/2″.
To do this, I installed a 2″ x 2″ board on top of my pergola going right down the middle.
And I saved myself some money. Because the panels are flexible, they bent over that middle board without requiring any ridge caps at all.
Theoretically, I should have sealed the roofing panels along the overlaps to prevent water from leaking through. But since I’m not that concerned about making it totally water proof, I didn’t bother.
If you live in an area with more snow, you may want to create more of a slope than I did. But I think you could use a similar idea by cutting the panels in half. Then installing a taller middle board, extra supporting boards at lower heights to support the panel, and adding ridge caps at the peak to seal the top.
3 | How To Install Clear Plastic Roofing Panels
If you want to see the standard installation method, this video is a good place to start:

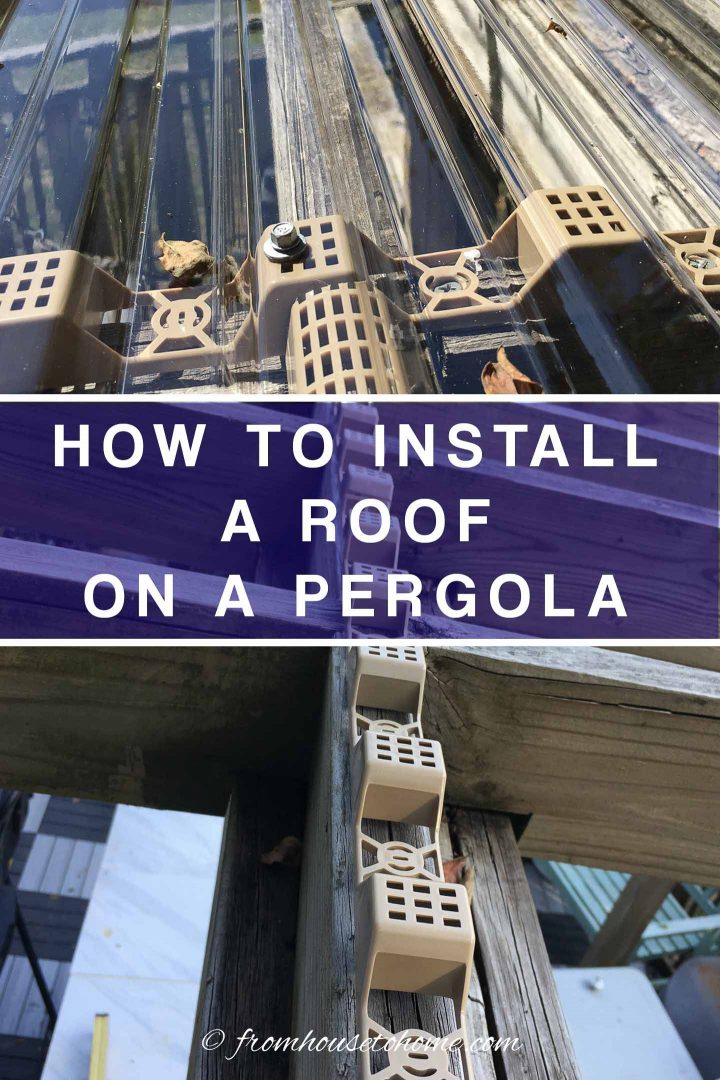

Attach The Horizontal Closure Strips
The first step is to attach the horizontal closure strips to the top of the pergola.
For this, you’ll need wood screws. They work best if they have washers on them to prevent them from pulling right through the plastic closure strips.
Line the end of one of the horizontal closure strips up with the edge of your pergola. Make sure that it is running straight along the beam.
Screw it onto the beam in the low sections of the closure strip.
When you get to the end of the first strip, attach the next strip and continue screwing it on to the beam until you get to the end of your pergola frame.
Once the first row is complete, cut off any extra closure strip with tin snips.
Then move on to the next row. Ideally, it should be 2 feet over from the first strip, but it can be up to 3 feet away.
The important thing is to make sure that you’ve got the hills and valleys lined up straight across from each other. Otherwise, you’ll have trouble getting the corrugated roofing to lay flat like it’s supposed to.
Continue adding horizontal closure strips until you get all the way across the top of your pergola.
Attach The Vertical Closure Strips
Once all of the horizontal closure strips are installed, add the vertical closure strips.
If your roof panels will end at the edge of your pergola frame, line the vertical closure strips along the end between the last raised part of the horizontal strips.
Cut the vertical closure strips to length using tin snips.
Since my pergola roof extends out beyond the frame, I used the vertical closure strips to secure the edges of the panel to the rafters that stuck out.
If you’re doing this, make sure you only install the vertical closure strips on rafters that line up with the raised part of the horizontal closure strips.

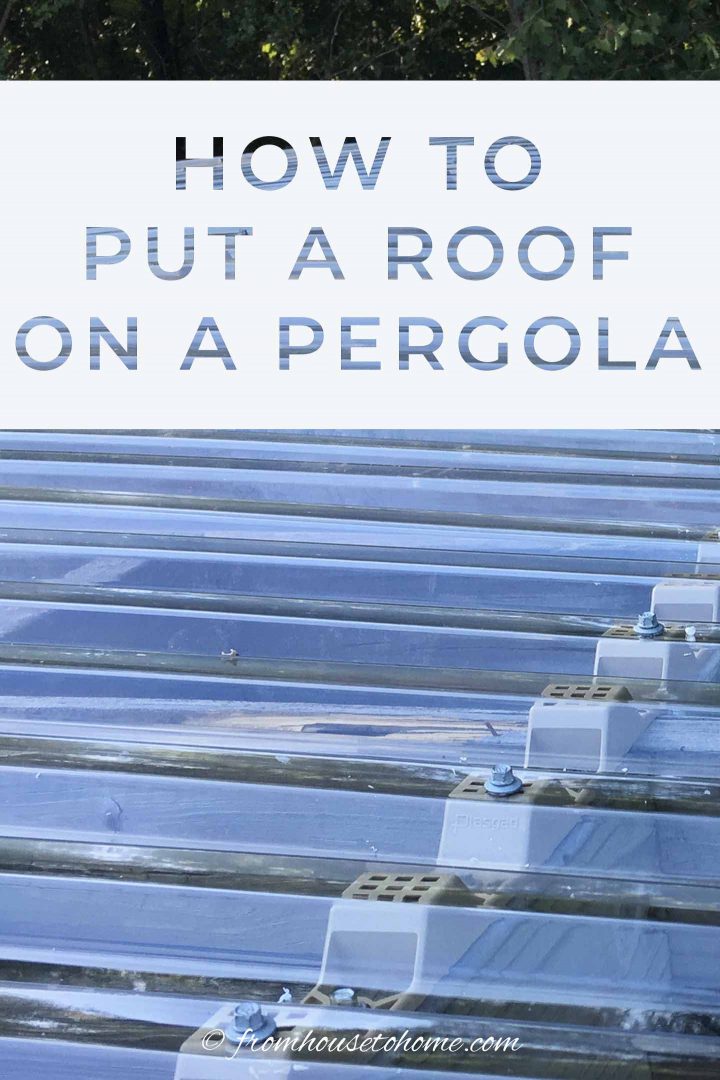

Screw On The Roofing Panels
Then you’re ready to start attaching your panels.
Put up the first panel so that it’s lying straight across the horizontal supports and the last raised groove is running on top of the vertical strip (if you have them).
Make sure that you have the proper side up. There should be a label on the panel that tells you what side that is. Remove the label before attaching the panel.
Since my panel was a little bigger than my pergola roof, I let it overhang on both sides. That way if my roof isn’t perfectly square (which I’m pretty sure it’s not), I can trim the panels later to end at the edge of the pergola roof line.
Then use a quarter inch drill bit to drill holes through the panel where the screws are going to go. These screws will be installed in the raised part of the horizontal supports and along the vertical supports.
You don’t need a screw in every raised section of the horizontal closure strip.
For the strips that run along the outside edges of your pergola roof, put a screw in every other raised section.
For the closure strips that are in the middle of your pergola roof, put a screw in every third raised section.

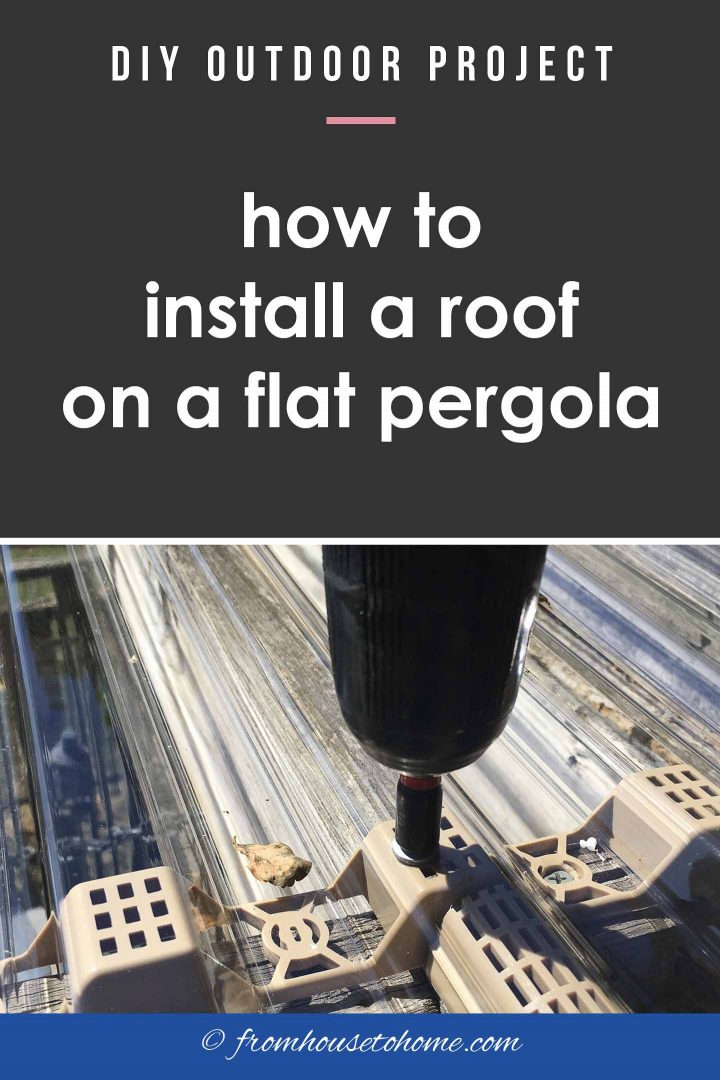

Then screw in the screws with rubberized washers using the socket bit.
The washer should be resting firmly on the plastic roofing panel, but not tight enough to cause a dimple in the panel.
When you get to the edge where the next panel will join, don’t put the screws in yet.
Put up the next panel so that the first raised section of the new panel overlaps the last raised section of the old panel.
Drill holes in the new panel like you did with the first one. Then attach both the first and second panels where they overlap to the pergola frame.
Continue installing panels until you get all the way across your pergola roof.
Trim The Edges
When you’re done, trim off any edges of the roofing panels using a strong pair of scissors or tin snips.
If you’re sure your pergola roof is square and you’re good at measuring, you could do this step before you put the panels up. Which would make it easier to cut.
But doing it after makes sure that the roof fits exactly.
And then you’re finished.
This whole project of putting it up, took me less than a day. So it was a very fast and easy way to put a roof on my pergola.

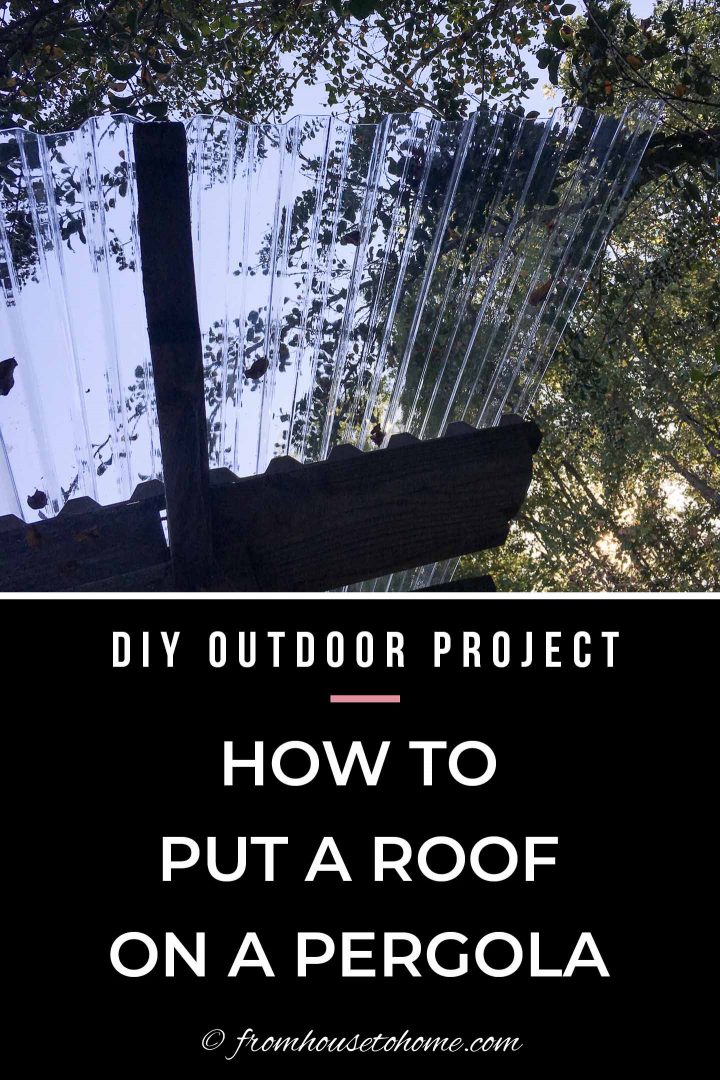

I love that you can see right through the panels.
I did trim the corners a bit so that there wasn’t such a big piece of unsupported roofing panel. I think that might cause issues if a big wind came along.
And it isn’t that obvious from the front either.
I think it was definitely worth the effort!
Other Outdoor Projects You Might Like
Have comments or questions on how to put a clear roof on a pergola? Tell us in the section below.
This post was originally published on October 10, 2019 but was updated with new content on November 20, 2021.
How has this design held up? For example the water tightness and wind resistance?
Hi Jeremy…we haven’t had any issues with it so far. I don’t think we’ve had any big wind storms since it was installed so I probably cannot say for sure how it will do under those conditions. But we have had quite a few heavy rain storms and I haven’t noticed any leaks.
Have your heard about hardware that allows you to connect your dry space pergola to your home? It has airflow for BBQ smoke and also keeps the rain out.
Is it hot underneath the panels?
Hi Patricia…I put it up in the fall so I haven’t had a chance yet to see what it’s like under the panels when it’s hot yet. I’ll add an update about that in the summer 🙂
Is it loud when it rains?
Hi Priscilla…No, not really. I think if the roof were metal, it would be noisy. But I haven’t really noticed it at all. I suppose if it was really raining hard, it might be…I haven’t been out there during those conditions so I can’t say for sure 🙂
How big is your clear roof, what dimensions? Appreciate this post & am about to embark on covering my 7.5’ x 18’ pergola.
Hi Andrea…Mine is a little smaller than yours – about 7′ x 8’…but I like it so much I’m probably going to install it over the bigger pergola I have this summer 🙂
Can you walk on it?
Hi Kafelyn…No, it’s not strong enough to walk on. The fiberglass is pretty thin.
Is there a maximum distance between the rafters? What is the farthest distance you can place them apart? Will that depend on the width of the plastic panels (26 ” vs 48 “)
Hi Geraldine…for the product I used (SunTuf), the maximum distance between the rafters is 36″ but they recommend 24″. I don’t think the size of the panels changes that.
Wow! These step by step directions look amazing!! I was wondering if you have any photos of it to see the entire roof, especially the slope that you created?
I am searching around your blog to find one!! We have a meat gazebo and we have been scouring the internet for a way to create a roof (for rain mostly, but also shade) and love these poly panels. We get a good amount of rain, mostly quick light showers. We will probably choose colored panels for the shade.And we definitely want to create some type of slope for run off. It has seemed impossible due to the fact that our gazebo is metal – not wood.
Hi Angela…I couldn’t find any pictures of the whole thing. I’ll have to take one and post it 🙂
I used UV blocking roofing panels. They look exactly the same but add shade!!! They come in a variety of colors from smoke to white.
Thanks for the suggestion!
I am interested in using these polycarbonate white panels(Hoping it will block the sun light). I have a 14*10 silverton backyard discovery pergola. I wanted to put a shade on top of the pergola. Not sure which option to go with either panels or canopy.
How much did the project cost approximately for 14*10?
Hi Vanc…For the panels, the project would cost about $250. I think the canopy would be quicker to install, but the panels are more permanent. Either option would work.
How do you clean them (it)?
Hi Suzie…I just spray it with the hose. There are some spots left that I’m going to try my DIY deck cleaner on, but haven’t done it yet so I can’t say for sure how well it will work 🙂
Hello Wanda.. Great post and right on time. I need to tackle this exact project for a client. Would love to see how you pitched it in the middle, PLEASE. I may have to cut the post 1/2 or 3/4 in the front to create a pitch. Thank you
Hi…I took advantage of the face that the panels are quite flexible and raised the middle by installing a board on top of the existing structure. So the panel goes up in the center because it goes over the top of that extra board and is at the regular structure height at the edges. However, the pitch isn’t as steep as the manufacturer recommends. I live in an area that doesn’t get snow very often so steep roof lines aren’t as necessary. I’ll try to remember to take a picture tomorrow.
I love the simple and effective design of yours.
I am debating between using Polycarbonate twinwall clear sheet and Corrugated one (like you used) for my pergola. I like the budget aspect of corrugated one. Is there any downside of using it other than structural strength which I am ok with for my pergola project. I am wondering if you still get enough sunlight and can you see through it clearly or not.
Thanks a lot.
Hi Rakesh…Yes, there is a lot of sunlight that comes through. You can see through it clearly but it’s not like looking through a window because of the ripples. The second last picture in the post shows a view from the bottom looking up through it so you can get an idea of what it looks like. The only other issue is that it’s a little more work to clean than (because of the grooves).
So I have a metal pergola, not a wooden one. I want to attach a roof like yours for rainy days – I assume I’d have to add some sort of wooden frame for the panels to attach to ?
Hi Jasmine…I think that would be the easiest thing to do. You might be able to screw into the metal but I’m not sure if it would hold.
What is the product that you use to make the pitch of your roof when I showed my builder he never seen anything like it
Where do you purchase
we live in Michigan so we had to have quite a bit of pitch
Hi Juliann…Sorry, I’m not sure which part you are referring to. To add a little height in the middle of my pergola, I just added a board and used the flexibility of the clear panels to bend over it. The brown strips that I installed on top of the pergola are from the panel manufacturer…they make the panels attach more securely to the pergola. Having said that, I don’t think this “bending” method would work in Michigan. You would probably need to build a wood frame at the right pitch. Then secure the brown panel strips to the frame and attach the panels on top of that. I bought all of the supplies at Home Depot (there are links under the “Supplies” section of the post).
What size board did you use to create the pitch?
Hi Katrina…I used a 2×2 board for the pitch. But my pergola isn’t very wide (it only sloped down 3 feet on each side of that board) and I live in an area that doesn’t get any snow (so I just needed to have the water run off). If you are covering a wider space or need to make sure snow doesn’t accumulate, you will probably want to use something higher than that. If that’s the case, I would add more boards going across every 2 to 3 feet, each one being shorter than the previous (so if you start with a 2×6 as the pitch board, then install a 2×4 about 2 or 3 feet out on both sides, then put a 2×2 the same distance out from the 2×4’s). That will give you a place to attach the closure strips and still maintain the slope. I hope that helps!
This is a wonderful explanation of the process. I am wondering if I can use these to add a roof to our vinyl pergola? What are your thoughts?
Hi Jamie…I think you should be able to. The only question I would have is if the screws would stay in the vinyl. You might want to try putting one in somewhere hidden and see if it holds. If so, then you’re good to go 🙂
First of all, great detail and write up. This is what I was looking for. However, a note of caution. The SUNTUF installation documents and technical documents both have this line: “Never install panels on flat roofs.”
Drainage and wind could be issues for some people attempting a flat install.
Disregard my last comment.. you covered this already. ahaha
Thank you so much for the detailed instructions on putting a polycarbonate roof over a pergola. We want to do the same thing but are worried about using the grill underneath. Our pergola roof now is about 8 1/2 ft from the floor and we have a charcoal grill. We noticed you have a grill. Will grilling damage the polycarbonate panels above?
Hi Patricia…I haven’t had any problems with the grill damaging the panels. It is right on the edge of the pergola so some of the heat will escape out the sides. I think it your roof is 8 1/2 feet up, you shouldn’t have any problems.
Another question: we always spray our pergola (all wood components) with bleach/water mixture to clean off the mildew in the spring. Would the bleach damage the poly panels?(We have to spray the pergola wood framework underneath.)
Hi Patricia…I haven’t tried regular bleach (I wash it and the pergola with an oxiclean and water mix). I don’t think the bleach would hurt it, but I would definitely try it on a small piece before doing the whole roof.
Thank you!! Putting a board in the middle idea is super. Exactly what I was looking for.
Glad it was helpful 🙂
